PVL Proxima · Villas

Proxima pleated mosquito screen

PVL Proxima is the pleated mosquito screen for the widest openings in a Dubai villa: sliding glass walls, lift-and-slide and bifold doors. One panel closes up to 8 m, or up to 4 m high at 6 m wide. The price is set after the free survey; for comparison, a standard patio door is AED 1,550.

Proxima pleated mosquito screen across a very wide sliding glass wall of an Emirates Hills villa
WhatsApp a photo
Villa terrace with pleated mosquito screens on wide doors next to the pool

Why wide villa openings need Proxima

In Emirates Hills, Dubai Hills or Damac Hills the living room often opens to the garden through a wall of sliding glass. Uno and Centra stop at 3.5 m, so a wider span needs Proxima.

The screen stays folded while the family goes in and out to the pool, then closes across the full width at dusk, when mosquitoes rise from the watered lawns.

  • One panel, no line in the middle of the view
  • Magnetic lock on the closing side
  • 0.8 × 0.8 mm mesh across the whole span
  • Low flat bottom track you walk over with a tray

Is your opening a Proxima job?

Is the glass more than 3.5 m across?

That is past the limit of Uno and Centra. Proxima or Double Centra cover it.

Uno or Centra already reach this width and cost less.

Is the glass taller than 3 m?

PVL 39 with mesh overlap goes to 4 m high, at up to 6 m wide.

The full 8 m width is open to you.

Would you rather see no join in the middle?

Proxima closes with one bar at the far jamb.

Double Centra splits the width into two halves that meet.

Get a price in 1 minute

Five taps to your quote

8.0 mwidest span, one panel
4.0 mtallest, at up to 6 m wide
4 frame typessliding, lift-and-slide, bifold, tilt
2 yearson the mechanism, 7 on the frame

Proxima pleated screen size limits

PVL profileWidestAt a height up to
PVL 39, no overlap8.0 m3.0 m
PVL 29, no overlap8.0 m3.15 m
PVL 39, with mesh overlap6.0 m4.0 m
PVL 22 EZ4.5 m3.0 m
PVL 224.5 m2.5 m
PVL 29, with mesh overlap3.5 m4.0 m

Sorted by width. The ratio of height to width sets the real limit, so the measurer picks the profile for your glass.

Proxima or another screen for wide glass

Pleated mosquito screen on a folding glass door of a Dubai villa terrace

Proxima

  • Folds into one side cassette
  • Up to 8 m, no line in the view
  • For a doorway used all day
After the free surveyOpen →
Sliding mosquito screen panel on its own track beside a glass door

Sliding panels

  • Framed panels on their own track
  • Made to measure
  • For glass opened now and then
from AED 810Open →

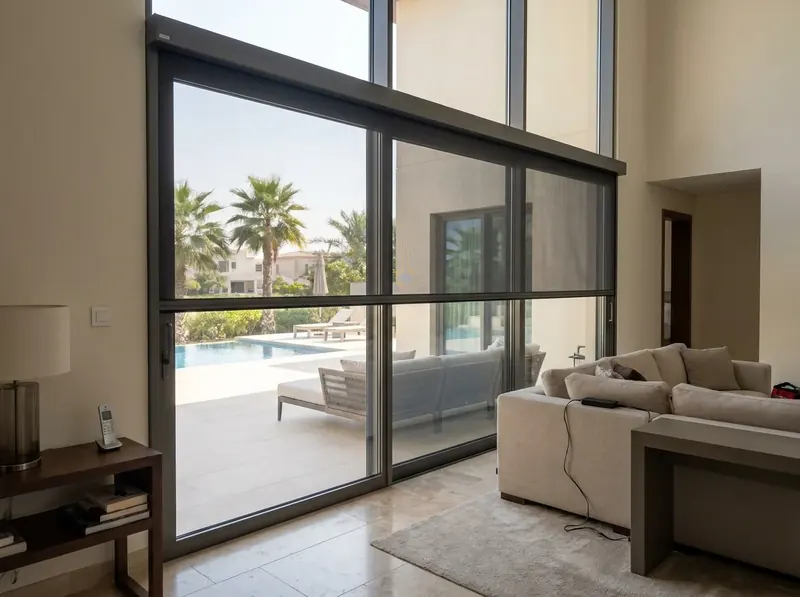

Motorised mosquito screen half lowered on tall glass, switch on the wall

Motorised screen

  • Rolls up and down at a switch
  • For tall glass that is hard to reach
  • Priced plus 5% VAT
from AED 2,250Open →

What we check on a glass wall

The door system

Lift-and-slide, bifold or plain sliding. Each has its own threshold and moves in its own way.

Where folded glass parks

On a bifold door the cassette goes where the stacked leaves will not hit it.

Height against width

We measure both at several points and pick the profile from the limits table.

The top fixing line

A long top rail needs solid fixing along its whole length, on the frame or the wall.

Price for your glass wall

Tap your opening. A glass wall is priced at the free survey, smaller doors from our list.

Your price·Made to measure and fitted. Confirmed at the free survey.Send on WhatsApp →

A pleated screen on villa glass

A pleated mosquito screen drawn across the glass wall of a villa by the pool
Straight answers

When Proxima is more than you need

It is made for big glass. Some openings need less, or a different shape.

An ordinary patio door

Uno or Centra reach 3.5 m and cost AED 1,550 per patio door.

Two glass sides meeting with no post

A corner takes the Corner system, not one long panel.

Glass taller than 4 m

The tallest Proxima is 4 m. For double height glass we look at a motorised screen.

How it goes

From a photo to a fitted screen


Send the opening on WhatsApp. We reply with a price range.

Survey

We measure and confirm the price. Free anywhere in Dubai.

Made to size

Made to your opening, mesh and frame colour. From survey to fitting in 3 to 5 days.

Fitting

Our own team fits, adjusts and cleans up.

Warranty: 5 years on the frame, 2 years on the mechanism, 2 years on fitting.

Google reviews

What our clients say

5.0★★★★★Google · Damac Hills 2 · 7 reviews
AAnderson AteufackGoogle★★★★★

“The roller mechanism on our existing net broke. They replaced it with a new upgraded system that rolls smoother and locks in place better. Much better than the original.”

HHamza KhokharGoogle★★★★★

“Added nets to all winds and doors throughout the houset was a big job, but they completed in one day. Team of workers, very effiant. Photos attached.”

GGhulam FaridGoogle★★★★★

“Quick installation of nets in the kids! room. They were careful not to wake the baby during nap time = very considerate. Small jeb but they treated it with the same care es a big project.”

All reviews on Google →Reviews are quoted word for word
Questions

What people ask

How much does a Proxima pleated screen cost?+

It is priced after the free survey, because width, height and profile all change it. For comparison, a pleated screen on a standard patio door is AED 1,550.

What is the widest glass Proxima can close with one panel?+

8 m, with PVL 39 or PVL 29 without mesh overlap, at a height of up to 3 m or 3.15 m.

Proxima or Double Centra for an 8 m glass wall?+

Both reach 8 m. Proxima closes with one panel and leaves no line in the view; Double Centra splits the width so you can open one half.

Does Proxima fit a lift-and-slide door?+

Yes. Lift-and-slide doors are on the Proxima list, and the measurer checks the threshold before the screen is made.

Can Proxima go on a bifold door?+

Yes, sliding folding doors are on its list. The measurer checks where the folded glass stacks, so the glass and the cassette never clash.

How long does a glass wall screen take?+

3 to 5 days from the survey to fitting.

How do I keep a long bottom track free of sand?+

Vacuum the track and the folds with a soft brush when sand builds up, and wipe the track with a damp cloth. The bar then runs evenly across the full width.

What should I do with a wide screen in a shamal?+

Fold it into the cassette and close the glass. The mesh is there for insects, and a folded screen takes no load from the wind.
