PVL Corner · Terraces

Corner pleated mosquito screen

PVL Corner is a pleated mosquito screen for a terrace or balcony corner where two open sides meet with no post. Each side gets its own pleated panel, up to 3.5 m wide, and the two handle bars close against each other at the corner. It is priced after the free survey, because both sides are measured separately.

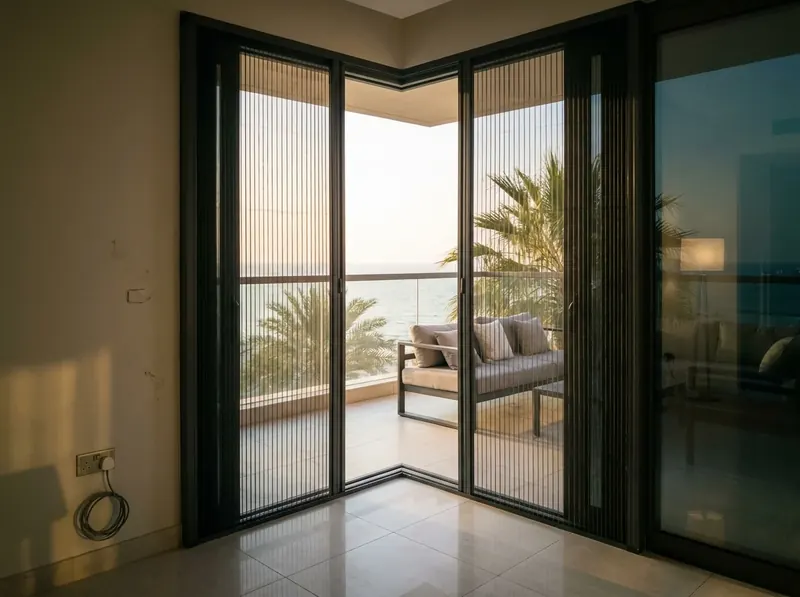

Two Corner pleated mosquito screen panels meeting at a post-free terrace corner on Palm Jumeirah
WhatsApp a photo

How a corner mosquito screen closes

On many Palm Jumeirah terraces and penthouse balconies the glass turns the corner with no post, so there is nothing to fix a screen to where the two sides meet.

Corner puts a cassette at the outer end of each side. Draw both handle bars to the corner and they close against each other. Fold them back and the corner is open again.

  • Each side is a separate pleated panel
  • Low flat bottom track on both sides
  • Profile powder coated to match the terrace frames
  • Italian components
No postwhere the two sides meet
90°the two bars close at the corner
3.5 mwidest side, PVL 39 profile
Freesurvey, price named on site
Get a price in 1 minute

Five taps to your quote

Can your corner take PVL Corner?

Do the two sides meet with no post in the corner?

That is the opening Corner is made for.

With a post there, each side takes its own Uno and the job is simpler.

Is each side 3.5 m wide or less?

One panel per side can close it, depending on the height.

Send a photo with the sizes. A longer side needs a different layout.

Is there a wall or frame at the outer end of each side?

That is where the two cassettes go.

Send photos of both ends. The measurer checks the fixing on site.

Corner pleated screen limits per side

PVL profileMax width of a sideMax height
PVL 39, no overlap3.5 m3.0 m
PVL 39, with mesh overlap3.0 m4.0 m
PVL 29, no overlap3.0 m3.15 m
PVL 29, with mesh overlap2.0 m4.0 m
PVL 22 EZ2.4 m3.0 m
PVL 222.4 m2.5 m

Each side is checked on its own against these limits, so the two sides may even get different profiles.

Sample of pleated mosquito mesh with a fine 0.8 mm cell

What you see through the mesh

The mesh cell is 0.8 × 0.8 mm: small enough to stop mosquitoes, open enough for the sea breeze. From a sofa on the terrace the view goes on through a light veil of mesh.

The measurer brings mesh samples, so you can hold them against the light on your own terrace before you choose.

Corner, two Uno panels or zip screens

Two pleated mosquito screens drawn towards the open glass corner of a Dubai Marina apartment

Corner

  • Glass turns the corner with no post
  • Two bars close against each other
  • Up to 3.5 m on each side
After the free surveyOpen →
Pleated screen drawn across a balcony door in Business Bay, cassette at the side

Two Uno panels

  • A post stands in the corner
  • Each side closes on its own
  • Simpler to fit
AED 1,550 per doorOpen →
Zip mosquito screens lowered between the posts of a villa pergola

Zip screens

  • Open pergola, no glass on the sides
  • Screens drop between the posts
  • Priced at the survey
Open →

What we measure on a corner

Each side on its own

Width and height at both ends and in the middle, because floor and ceiling are not always parallel.

The corner itself

How square the two sides are, so the bars meet cleanly.

The outer ends

A wall or frame at each end to carry a cassette.

Drainage on the floor

Where rain and wash water run, so the track does not block them.

Corner pleated screen prices

Tap your opening. A corner is priced at the free survey; straight doors come from our list.

Your price·Made to measure and fitted. Confirmed at the free survey.Send on WhatsApp →
Straight answers

What a corner screen cannot do

A corner system solves one shape. This is what it does not solve.

Curved glass

A pleated panel runs in a straight line. A rounded balcony cannot take it.

A corner with a post

If a post stands in the corner, two separate Uno panels are simpler.

An open pergola

Without glass or walls on the sides there is no frame to fix to. Zip screens drop between the posts.

How it goes

From a photo to a fitted screen


Send the opening on WhatsApp. We reply with a price range.

Survey

We measure and confirm the price. Free anywhere in Dubai.

Made to size

Made to your opening, mesh and frame colour. From survey to fitting in 3 to 5 days.

Fitting

Our own team fits, adjusts and cleans up.

Warranty: 5 years on the frame, 2 years on the mechanism, 2 years on fitting.

Google reviews

What our clients say

5.0★★★★★Google · Damac Hills 2 · 7 reviews
AAnderson AteufackGoogle★★★★★

“The roller mechanism on our existing net broke. They replaced it with a new upgraded system that rolls smoother and locks in place better. Much better than the original.”

HHamza KhokharGoogle★★★★★

“Added nets to all winds and doors throughout the houset was a big job, but they completed in one day. Team of workers, very effiant. Photos attached.”

GGhulam FaridGoogle★★★★★

“Quick installation of nets in the kids! room. They were careful not to wake the baby during nap time = very considerate. Small jeb but they treated it with the same care es a big project.”

All reviews on Google →Reviews are quoted word for word
Questions

What people ask

How much does a Corner pleated screen cost?+

Corner is quoted at the free survey, since each side is measured and made as its own panel. A straight patio door, for comparison, is AED 1,550.

How do the two panels meet with no post?+

The two handle bars run to the corner and close against each other. There is no post and nothing fixed in the corner itself.

Can Corner go on a penthouse balcony?+

Yes, if the glass turns the corner with no post. Terraces and balconies are the openings Corner is made for.

How big can each side be?+

Up to 3.5 m wide at 3 m high, or 3 m wide at 4 m high, with the PVL 39 profile.

One side of my terrace is 5 m long. What then?+

One Corner panel stops at 3.5 m. Send photos with both lengths and the measurer works out another layout for the long side.

Can I leave the corner closed in a shamal?+

Better not. A corner catches wind from two sides, so fold both panels into their cassettes and close the glass.

Will the screen stop a child or a pet?+

No. A mosquito screen does not hold the weight of a child or a dog leaning on it. The balcony railing stays the barrier.
